Purpose:

The plate conveyor is widely used in metallurgy, coal, chemical engineering, electric power, machinery manufacturing, and especially in modern automobile manufacturing assembly lines. It can be used for horizontal or inclined conveyance of bulk materials such as coal, as well as for conveyance of finished products (conveyance that meets the assembly process requirements in automobile assembly lines), and for conveyance of stamping scraps in automobile body factories. Furthermore, it can also meet the conveyance requirements of high-temperature materials at 600-700°C.

Main features of the product:

1. It has a wide range of adaptability and can transport all solid materials except those with extremely high viscosity.

2. Large conveying capacity.

3. The traction chain has high strength and can achieve long conveying distances.

4. The layout of the conveying height line is flexible, with a tilt angle of up to 35 degrees..

5. The conveying process can adapt to various processing needs.

6. It operates smoothly, safely, and reliably.

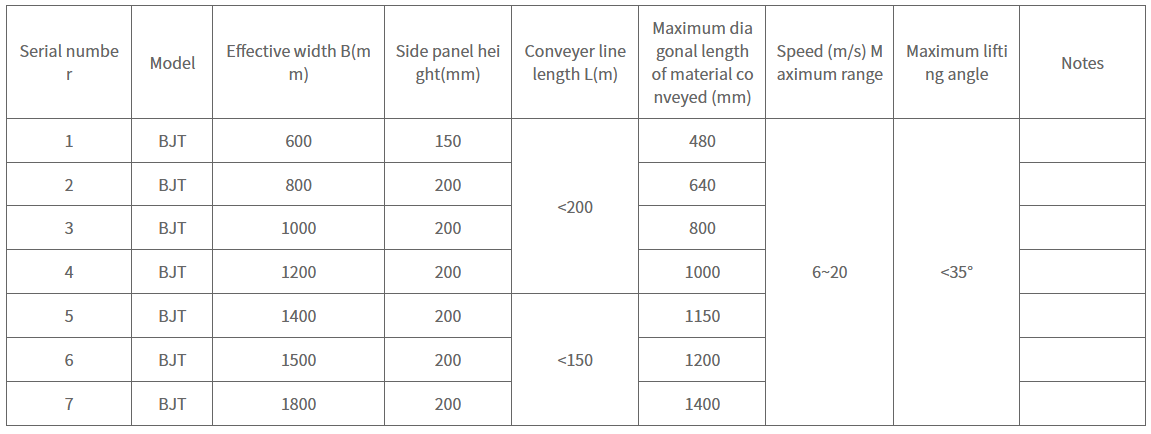

Technical Specifications

Note: For the BLT series and BPT series not listed in the table, please consult our company for detailed information.
