Technical specifications for various series of belt conveyors

1. Purpose, performance, and characteristics:

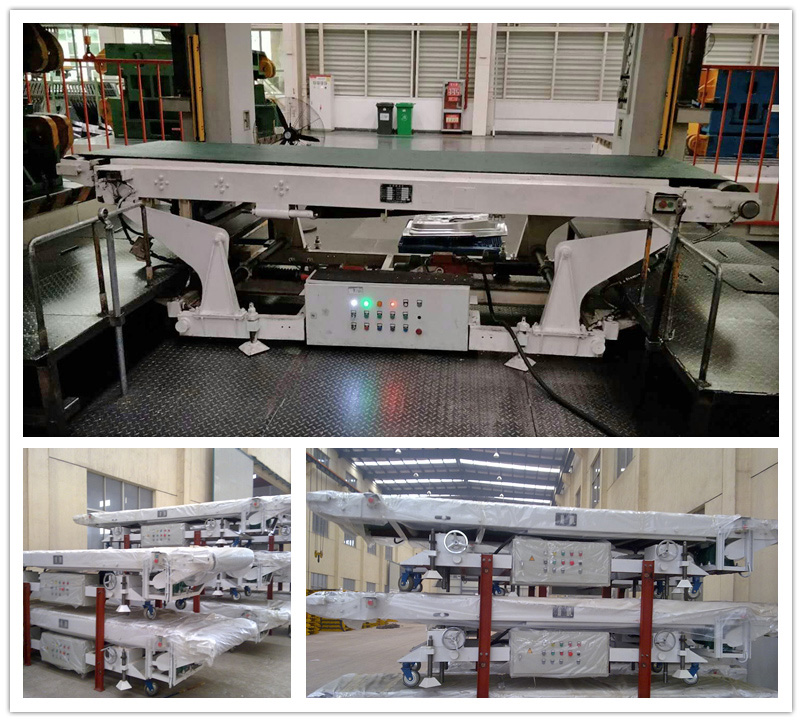

The adjustable, mobile, and adjustable, mobile, and extendable belt conveyor is an advanced, novel nylon belt conveyor equipment designed based on the needs of the production line and conveying of stamped finished products in the stamping workshop of automobile factories, with reference to old-fashioned domestic belt conveyors. It is convenient to use and maintain, and has comprehensive performance.

This equipment can transport various stamped finished products and features automatic startup and shutdown functions, making it very convenient to use, safe, and reliable.

2. Main Technical Parameters:

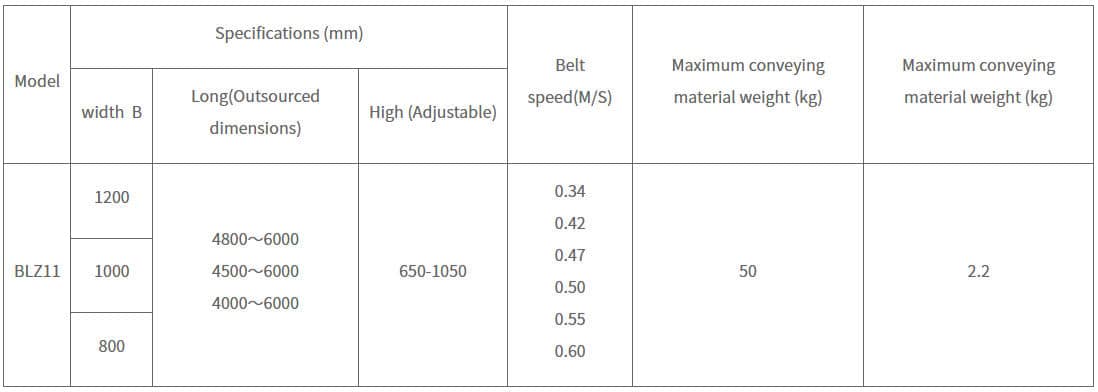

2.1. Lift-able and mobile type (Table 1)

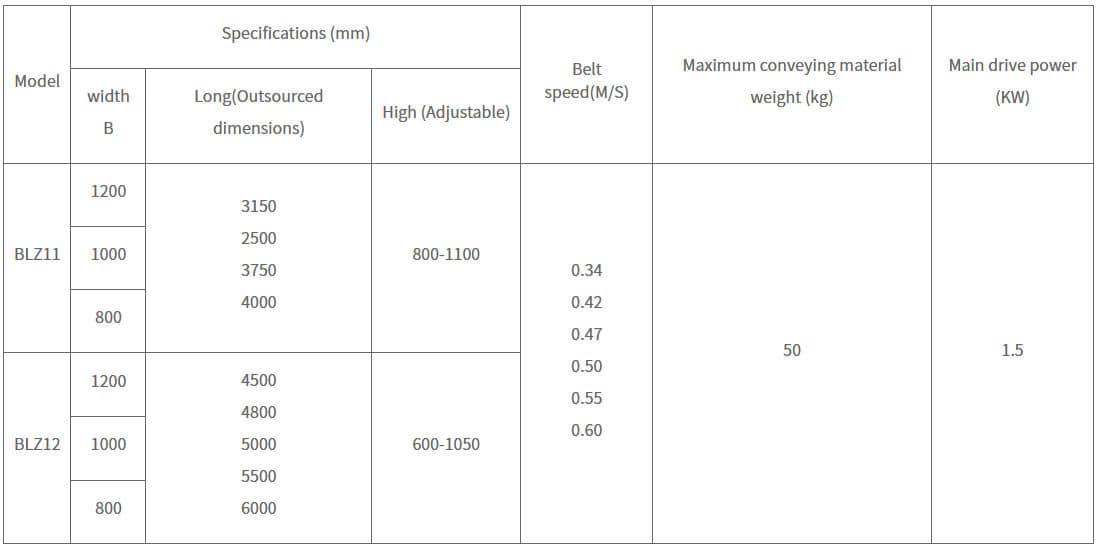

2.2. Liftable, movable, and extendable

Note: If special specifications are required for width, length, height, and belt speed, they shall be determined separately.

Both types of conveyor elevators utilize two electric push rods. The first type of conveyor has an electric push rod with a thrust of 700 kg, while the second type has an electric push rod with a thrust of 1000 kg. Both have a speed of 24 mm/s.
