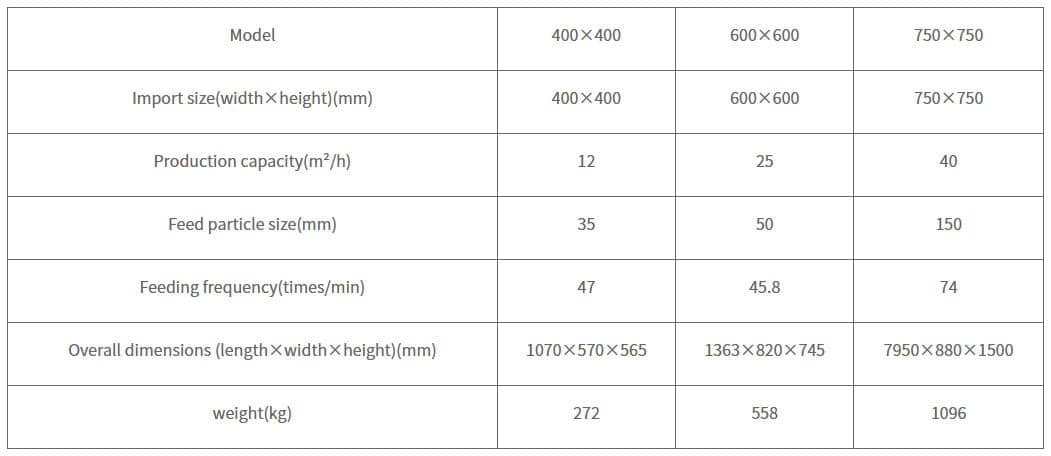

The pendulum feeder is suitable for use in mineral processing, coal mining, chemical industry, and other sectors, delivering granular materials from storage bins through a hopper to various types of receiving devices. It is not suitable for conveying dry powdered or oversized materials, as this may cause dust pollution and blockage of the discharge outlet. The working principle of the pendulum feeder is as follows: The motor is decelerated through a V-belt reducer. The decelerated power is transmitted to an eccentric wheel with adjustable eccentricity. The eccentric wheel, through a connecting rod, drives the oscillating base plate to oscillate. The ore located in the ore bin above the feeder passes through the internal cavity of the feeder body and is discharged out of the machine at a constant speed through the discharge outlet, ensuring uniform feeding to the ball mill.

The disc feeder is a feeding device suitable for fine ore particles smaller than 20mm. The disc feeder consists of a drive device, a feeder body, a metering belt conveyor, and a metering device. The feeder and belt conveyor are driven by a single drive device, whose electromagnetic clutch serves to enable the start, stop, and function switching of the feeder. The belt speed of the metering belt conveyor is less than 1m/s. A speed detection device is installed to measure the belt speed, and a detection rod is provided for adjustment to prevent the weighing roller from skewing.

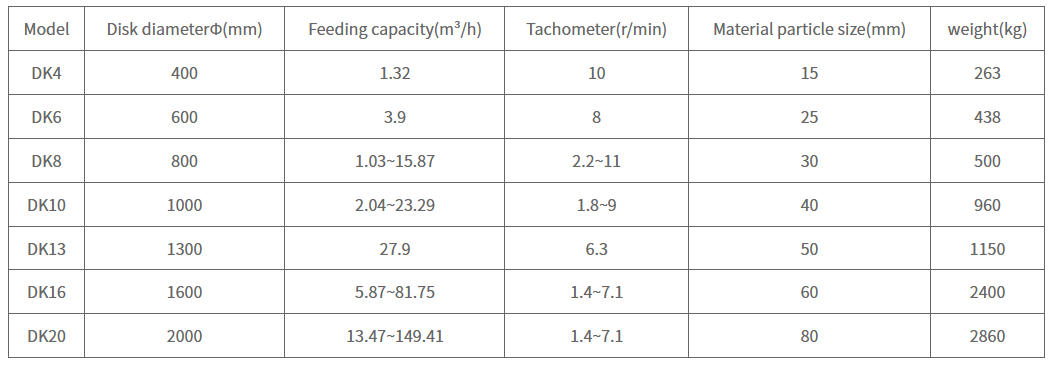

Technical parameters of DK type open-type feeder:

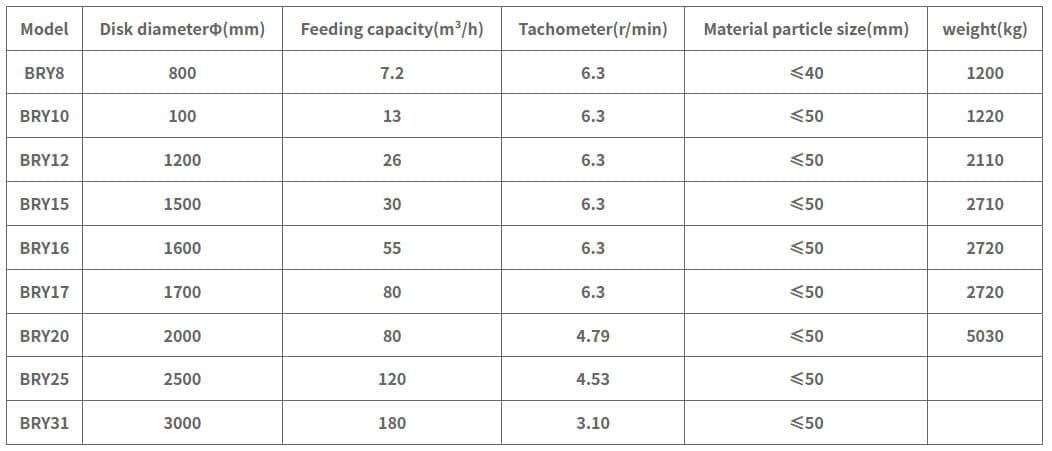

Technical parameters of BRY closed-seat feeder:
