The bucket elevator boasts significant advantages such as large conveying capacity, high lifting height, stable and reliable operation, and a long service life. Its main performance and parameters comply with JB3926-85 "Vertical Bucket Elevator" (this standard is equivalent to international standards and advanced foreign standards). The traction circular chain conforms to MT36-80 "High-Strength Circular Chain for Mining". This elevator is suitable for conveying powdery, granular, and small-block materials with little or no abrasiveness, such as coal, cement, stones, sand, clay, and ore. Since the traction mechanism of the elevator is a circular chain, it is allowed to convey materials with higher temperatures (material temperature not exceeding 250℃). The general conveying height can reach up to 40 meters. The TG type can reach up to 80 meters.

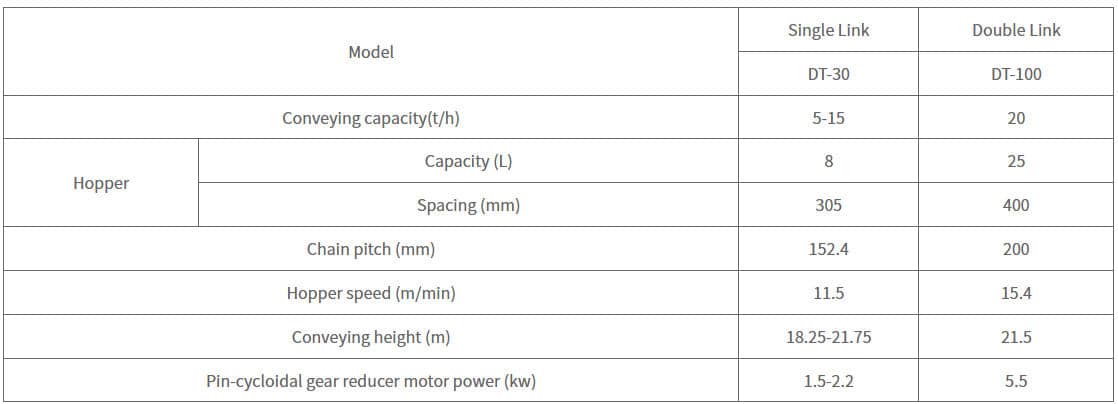

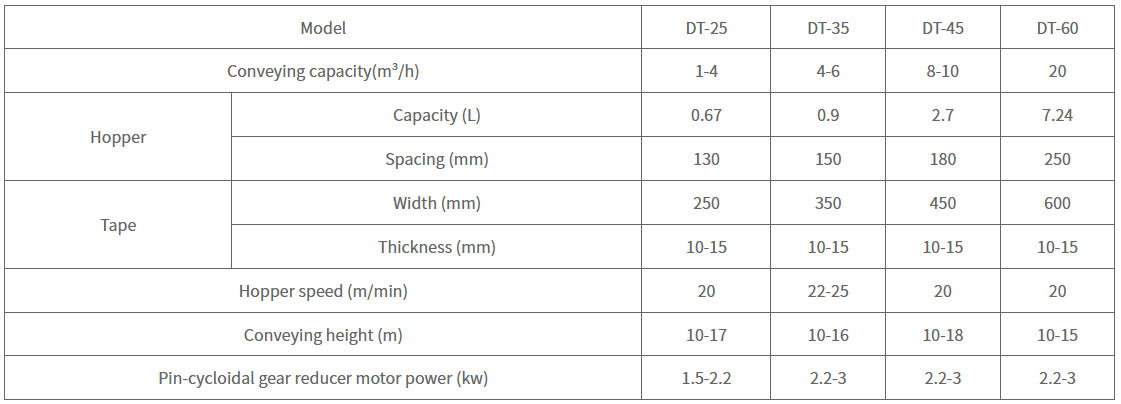

DT type internal bucket belt drive

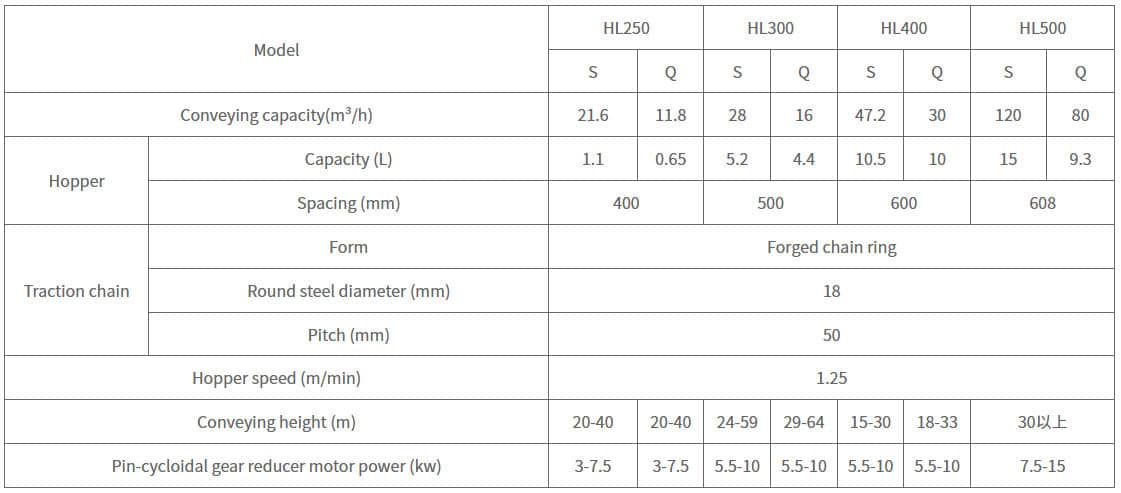

HL type external bucket chain drive

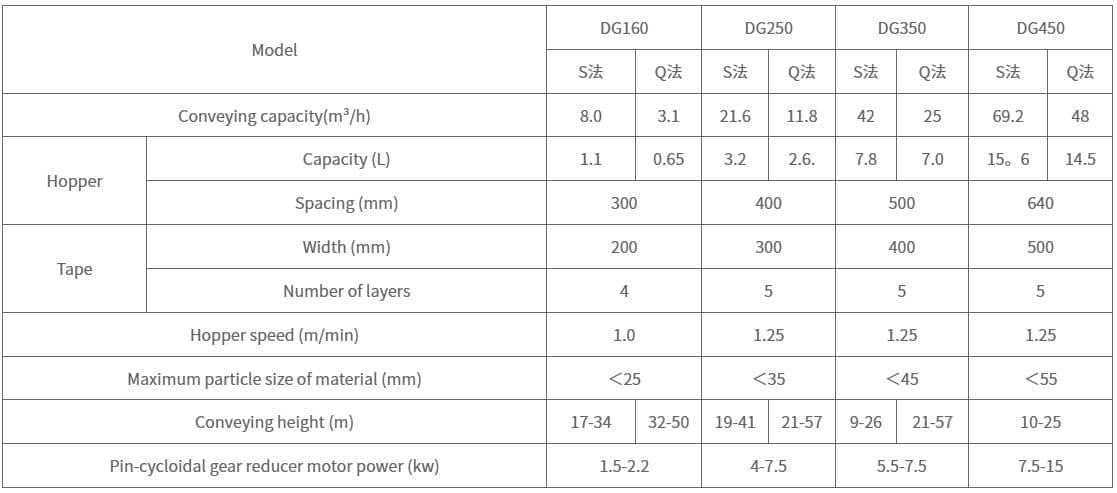

DG type external bucket belt drive

DT type external bucket plate mill drive
